TTC Operated By ENSCO –– Continuous Welded Rail: Managing Track Buckling and Stability

Track buckles are among the most dangerous track-related defects because they can develop rapidly and with little warning.

PUEBLO ––Seasonal transitions, rather than peak temperatures alone, are critical periods for CWR risk management and inspection planning. Railway Track & Structures, March 2026. Article by Radim Bruzek, Research and Development Manager, TTC, ENSCO, Inc. Pueblo, Colo.

Continuous welded rail (CWR) is the foundation of modern railroad track. By welding rail into long, continuous strings, typically exceeding 400 feet, railroads have largely eliminated joints, reducing impact loading, lowering maintenance costs, and improving ride quality. CWR also supports heavier axle loads and higher traffic densities that would be impractical with jointed rail. These advantages come with an important trade-off: long, constrained rails are highly sensitive to temperature, and managing the forces they develop is essential to track stability.

Unlike jointed rail, CWR cannot freely expand or contract. Instead, temperature changes generate longitudinal forces within the rail. In cold conditions, tensile forces dominate and can lead to rail breaks or pull-aparts. In hot conditions, compressive forces dominate and can cause track buckling, often called “sun kinks.” While the basic mechanics are well understood, real-world CWR behavior is shaped by the interaction of track structure, maintenance history, environmental conditions, and train operations. As a result, CWR management remains one of the most demanding aspects of track engineering.

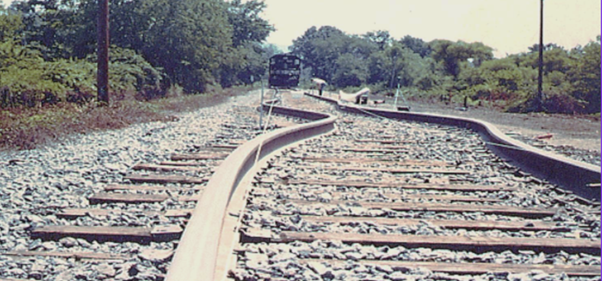

The consequences of ineffective CWR management are well documented. Track buckles are among the most dangerous track-related defects because they can develop rapidly and with little warning, often under loaded trains operating at speed. Accident data show that buckled track derailments, while relatively infrequent, are often severe and costly. In many cases, post-incident analysis reveals large reductions in rail neutral temperature (RNT) combined with weakened track resistance. Such conditions significantly narrow the margin between safe operation and instability.

RNT is central to understanding CWR behavior. It is the rail temperature at which the net longitudinal force in the rail is zero and is commonly associated with the temperature at which the rail was installed or last adjusted. Railroads typically aim to maintain a relatively high desired rail neutral temperature to reduce buckling risk during hot weather. In practice, however, RNT is not a fixed value. It evolves over time and can be altered by rail breaks, defect removals, interim repairs, tamping, surfacing, curve movement, and longitudinal rail movement under traffic. Each of these activities can incrementally reduce RNT, sometimes without clear visibility to field personnel or engineering staff.

One of the industry’s persistent challenges is that RNT cannot be easily measured in a continuous, non-intrusive way. Traditional methods, such as cutting the rail to measure gap formation or fully de-fastening rail to conduct mechanical tests, are disruptive and impractical for routine use. As a result, railroads often rely on estimates derived from historical records, installation temperatures, or repair data. While these approaches can be effective when well documented and consistently applied, they introduce uncertainty that complicates operational decision-making, particularly during periods of extreme heat when margins are smallest and response time is limited.

Track buckling risk is influenced not only by rail forces but also by the lateral resistance of the track structure. Buckling occurs when compressive forces exceed the track’s ability to resist lateral movement. Lateral resistance depends on many factors, including tie type and spacing, fastener condition, ballast quality, shoulder width, alignment condition, and degree of consolidation. Maintenance activities such as tamping and lining can temporarily weaken resistance, leaving track vulnerable until ballast strength is restored through dynamic stabilization or traffic. During this period, railroads must balance production goals with risk management, often relying on speed restrictions and targeted inspections to bridge the gap.

Curved track adds another layer of complexity. Curvature reduces buckling strength and affects how rail forces are distributed and relieved. Curve “breathing,” maintenance-induced pull-in, and rail breaks within curves can all create uneven RNT profiles that are difficult to assess using traditional assumptions. Fixed structures, such as bridges, crossings, and turnouts, further restrict rail movement and are frequently associated with localized stress concentrations. These locations demand careful attention, particularly following maintenance or repair work performed at temperatures well below the desired neutral range.

Environmental conditions can amplify these challenges. Frozen ballast can significantly increase longitudinal rail resistance, altering the mechanics of rail breaks and RNT restoration. While frozen ballast may temporarily restrain rail movement, subsequent thawing can reduce lateral resistance and increase buckling susceptibility. Seasonal transitions, rather than peak temperatures alone, are therefore critical periods for CWR risk management and inspection planning.

Operational trends also play a role. Longer, heavier trains and distributed power operations introduce higher longitudinal and lateral forces into the track structure. In curves, elevated lateral forces can accelerate alignment degradation, increasing the likelihood that a thermal buckle will initiate at a pre-existing defect. These operating realities reinforce the need to view CWR management as a system-level challenge rather than a collection of isolated rules.

Another challenge facing industry is variability, both across networks and within individual railroads. Track structure, maintenance practices, traffic mix, climate, and historical installation temperatures can vary significantly from one subdivision to the next. As a result, practices that are effective in one territory may be insufficient or overly conservative in another. This variability complicates standardization and makes it difficult to rely on a single rule or threshold for buckling prevention.

To address these issues, industry has steadily moved toward more standardized procedures, improved training, and the use of decision-support tools grounded in track mechanics. Regulatory requirements establish a baseline for CWR policies and training, but many railroads have expanded beyond compliance, refining practices based on experience, research findings, and internal risk tolerance. Increasingly, the focus is on proactive intervention, identifying locations and conditions where buckling risk is rising before an incident occurs.

Software tools can play important role in this effort. Applications that estimate track buckling strength, evaluate buckling risk, calculate RNT adjustment parameters, and predict rail temperature help translate complex mechanics into practical guidance for both field and engineering personnel. When combined with accurate track data and sound judgment, these tools support more consistent decisions on speed restrictions, maintenance timing, and RNT restoration following rail breaks or defect removals.

Training remains equally critical. Effective CWR management depends on a shared understanding of fundamentals, for example how rail forces develop, how RNT changes, and how maintenance actions influence stability. Modern training emphasizes not only what procedures to follow, but why they matter, improving situational awareness and consistency across organizations.

Research continues to play a vital supporting role, particularly where industry experience alone is insufficient. Full-scale testing, laboratory studies, and numerical modeling are expanding understanding of RNT behavior in curves, under frozen ballast conditions, and near fixed structures. Dedicated test facilities allow researchers to examine rail force behavior under controlled conditions and validate assumptions used in analytical tools and procedures, helping close the gap between theory and field practice.

Looking forward, several priorities are clear. Accurate, non-intrusive methods for monitoring RNT remain a high-value goal. Better characterization of longitudinal and lateral resistance across a wide range of track and environmental conditions will further refine buckling risk assessments. Continued improvement of destressing procedures, including end effects, optimal de-anchoring lengths, and special cases such as curves or fixed structures will help make RNT restoration more effective and less disruptive. Equally important, advances in research must continue to be translated into usable tools, training, and field guidance.

By combining sound engineering principles with effective procedures, targeted training, and well-applied decision-support tools, the industry can continue to improve its management of track buckling risk. Research conducted at the Federal Railroad Administration’s Transportation Technology Center (TTC) in Pueblo, Colorado supports this effort by providing a controlled environment for studying CWR behavior under complex operating and environmental conditions. Testing at TTC enables repeatable evaluation of longitudinal rail forces, track resistance, and environmental effects that cannot be readily examined on revenue track, supporting validation of analytical tools and refinement of guidance for rail neutral temperature management. Ongoing and planned testing will focus on new measurement techniques and CWR behavior in challenging conditions, including high-degree curves and frozen ballast. As traffic volumes increase and operating demands intensify, continued advances in system-level CWR management will remain essential to safe and reliable rail operations.
